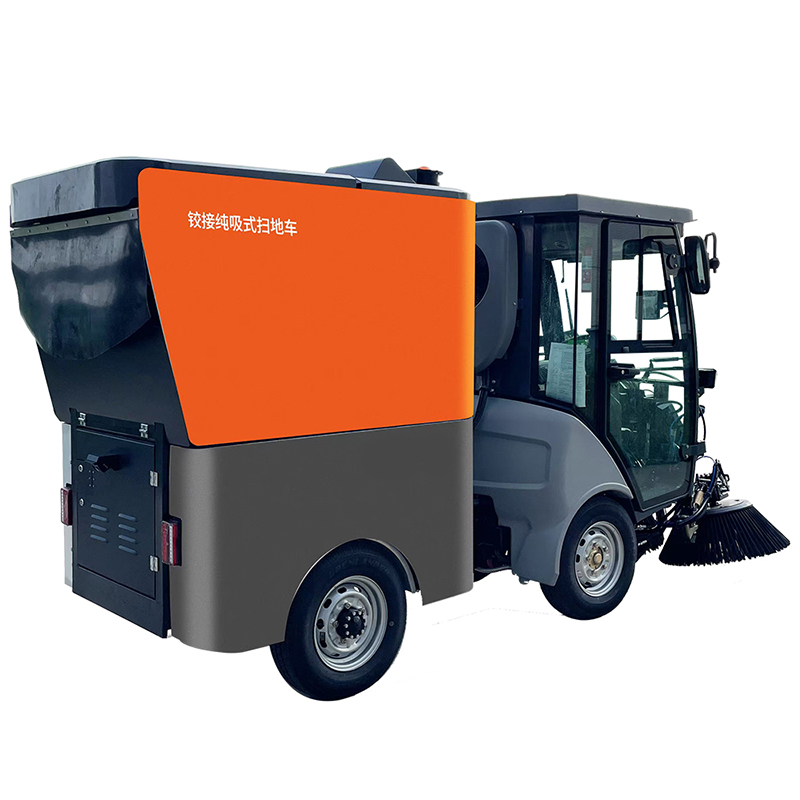

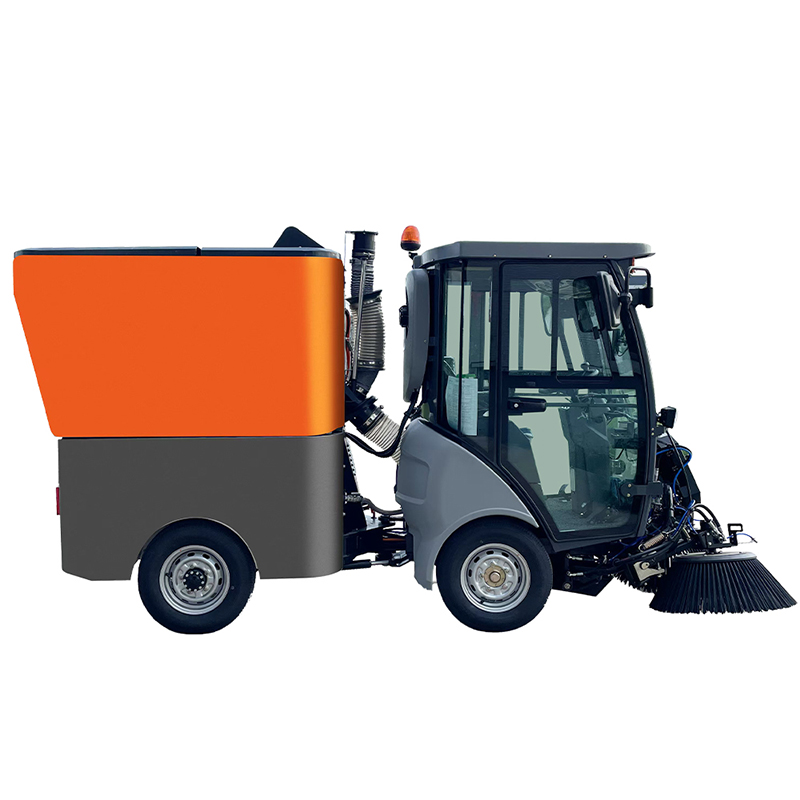

LH-X1850 Articulated Multi-Purpose Sweeper
Email : Yang@sdluhuan.com
Whatsapp :+86 13220811050
The LH-X1850 is a versatile, articulated pure suction sweeper with a quick-change interface for snow plows and brushes. 18,000 m²/h efficiency for year-round municipal maintenance.

The company has sufficient inventory and can be picked up at any time.

Product Description

The LH-X1850 is a high-performance, all-electric articulated vehicle designed for more than just street sweeping. While its 100% Pure Suction System excels at dust-free urban cleaning, its integrated Multi-Functional Quick-Change Interface transforms it into a powerful year-round utility tool. This zero-emission powerhouse is the ultimate solution for municipalities looking for versatility in sidewalks, bike lanes, and public square maintenance.

Key Advantages:

  • Year-Round Versatility: Featuring a built-in Quick-Attachment Coupler, the LH-X1850 can be easily equipped with an Optional Snow Plow or Rotary Snow Brush, allowing for rapid transition from summer sweeping to winter snow removal.

  • Articulated Maneuverability: Its specialized articulated chassis and 2.25m turning radius ensure precision handling around obstacles and in narrow urban corridors.

  • High-Efficiency Suction: With an 1850mm cleaning width and 18,000 m²/h efficiency, it handles everything from fine particulates to heavy debris.

  • Intelligent Power Management: Three operation modes (Eco, Standard, and Strong Suction) allow operators to optimize battery performance based on real-time task requirements.

  • Robust Performance: Driven by a 7.5kW AC motor, it handles 20% inclines with ease, even when equipped with front-mounted attachments.

  • All-Weather Operator Cabin: A panoramic, climate-controlled (AC/Heat) cabin provides a safe and comfortable environment for operators in both scorching summer heat and freezing winter conditions.

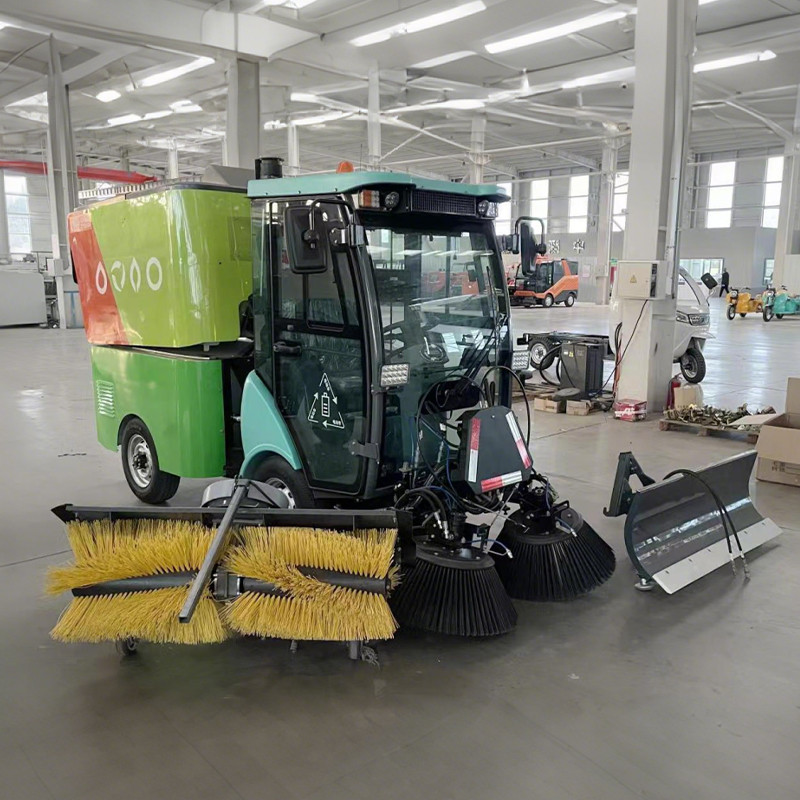

Articulated Pure Suction Sweeper

Rotary Snow Brush/Snow Blade

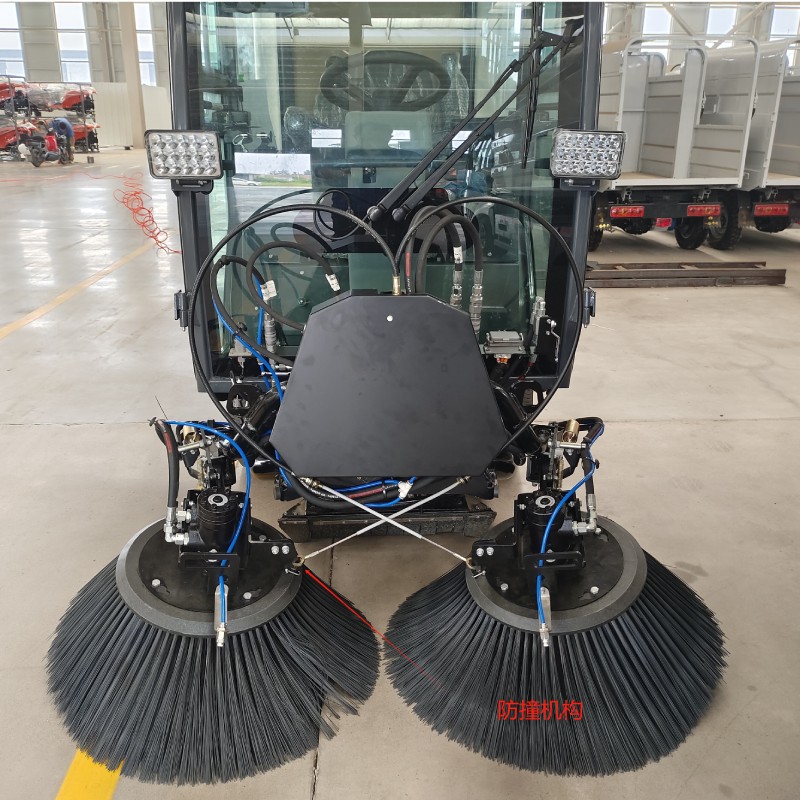

anti-shock mechanism

anti-shock mechanism


Technical Specifications - Metric Only:

Feature Specification Details
ModelLH-X1850 (Articulated Multi-Purpose Series)
Cleaning Width1850 mm
Cleaning Efficiency15,000 - 18,000 m²/h
Hopper Capacity800 L (Aluminum Alloy)
Water Tank Capacity150 L
Turning Radius2.25 m
Quick-Change InterfaceStandard (Supports Front-Mounted Attachments)
Optional AttachmentsSnow Plow (Snow Blade), Rotary Snow Brush
Max Travel Speed25 km/h
Max Gradeability20%
Battery System76.8V Lithium (LiFePO4) - 31.5 kWh
Drive Motor Power7500 W (High-Torque AC)
Suction Fan Motor5000 W
Dimensions (LWH)3700 * 1200 * 2100 mm
Standard ConfigurationAC/Heating, High-Pressure Washer, Wastewater Recycling, 5m Handheld Suction Tube
Warranty3 Years for Battery / 1 Year for Machine

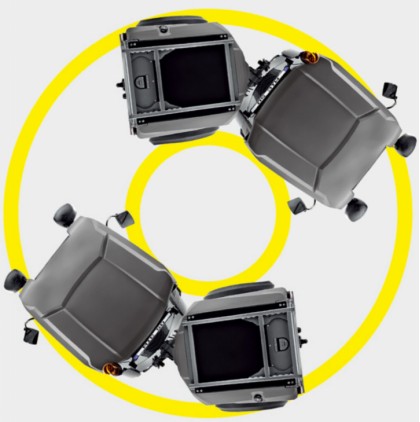

Iron connection system

Iron connection system

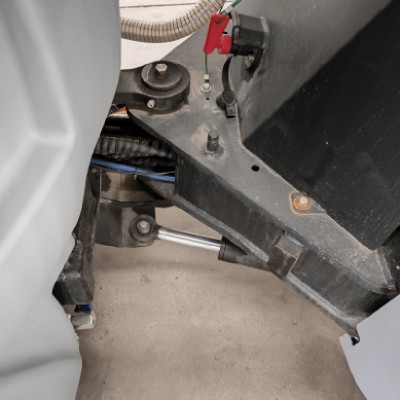

Serial rotation

Serial rotation

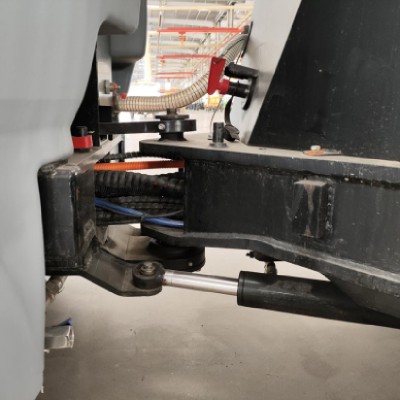

Front bump

Front bump
